Restoring Performance. Extending Service Life.
Rotor poles play a critical role in generator and motor performance, directly impacting efficiency, stability, and long-term reliability. At Sidewinders, we provide comprehensive rotor pole manufacturing and refurbishment services designed to restore structural integrity, improve electrical performance, and extend equipment life.
Our capabilities include controlled disassembly, detailed inspection, precision edge-wound coil fabrication, insulation systems application, and final assembly, all performed under disciplined quality control standards. By combining proven processes with extensive industry experience, we deliver consistent, repeatable results that help minimize downtime and keep critical equipment operating at peak performance.
Sidewinders Rotor Pole Capabilities
At Sidewinders, we specialize in the refurbishment of edge-wound rotor poles, delivering high-quality, repeatable results backed by proven processes and extensive industry experience. Our end-to-end approach ensures each component is evaluated, restored, and tested to meet strict performance and reliability standards.
Our Process
We provide a complete refurbishment workflow, from initial inspection through final assembly and shipment. Each step is performed under controlled conditions with documented quality assurance.
Incoming Inspection
- Full electrical testing (IR, winding resistance)
- Mechanical inspection and documentation
- Material verification, including coating evaluation and asbestos testing
Disassembly & Cleaning

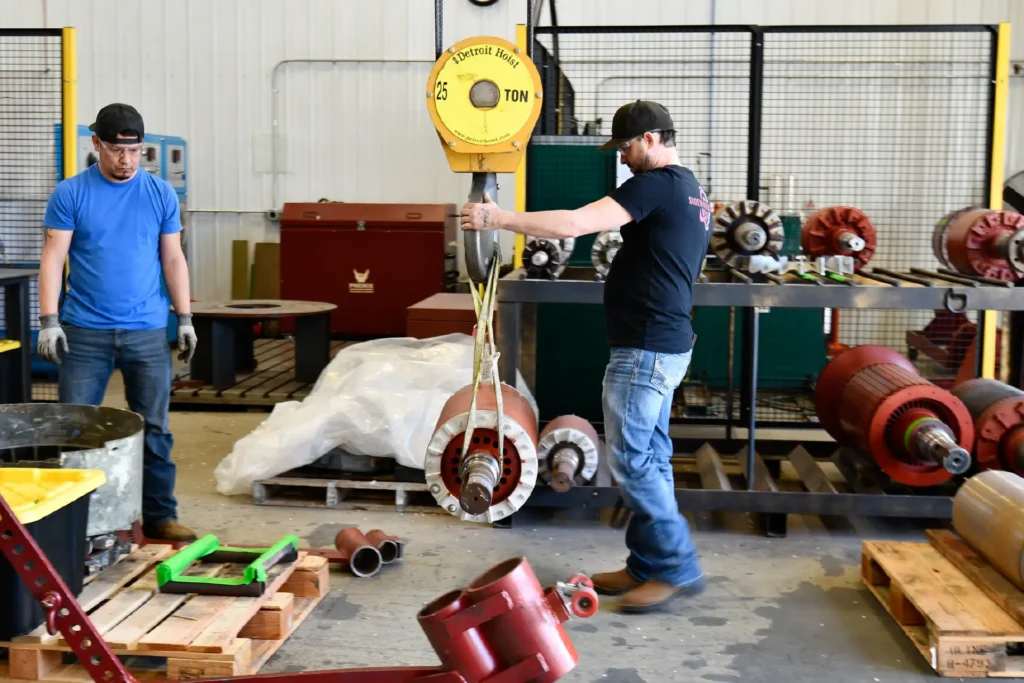

- Safe removal of coils and pole bodies
- Controlled insulation removal and abatement procedures
- Precision cleaning using bead blasting and manual finishing
Re-Insulation & Rewinding
- Replacement of insulation systems using Class F materials
- Multi-layer Nomex insulation systems
- G11 structural components
- Controlled installation onto existing pole irons
- Option for reuse of existing copper or new coil fabrication
Pressing & Thermal Processing
- Axial and radial pressing to consolidate windings
- Induction heat cycling with controlled bake process
- Continuous thermal monitoring using embedded RTDs
Electrical Testing
Testing is performed before, during, and after processing and includes:
- Surge testing
- Hi-Pot testing
- Insulation resistance (IR)
- Pole drop testing
Final Assembly & Finishing
- Coil alignment and lead positioning
- Void filling with high-performance epoxy systems
- Application of protective insulating coatings
- Final dimensional and visual inspection
Quality Assurance
- Comprehensive QA review prior to release
- Full documentation provided with each shipment
- Test records and inspection reports included for traceability
Packaging & Logistics
- Vacuum-sealed, moisture-protected packaging
- Desiccant-controlled environments
- Secure, transport-ready crating
Packaging & Logistics
- Vacuum-sealed, moisture-protected packaging
- Desiccant-controlled environments
- Secure, transport-ready crating
Precision Preparation, Testing & Installation

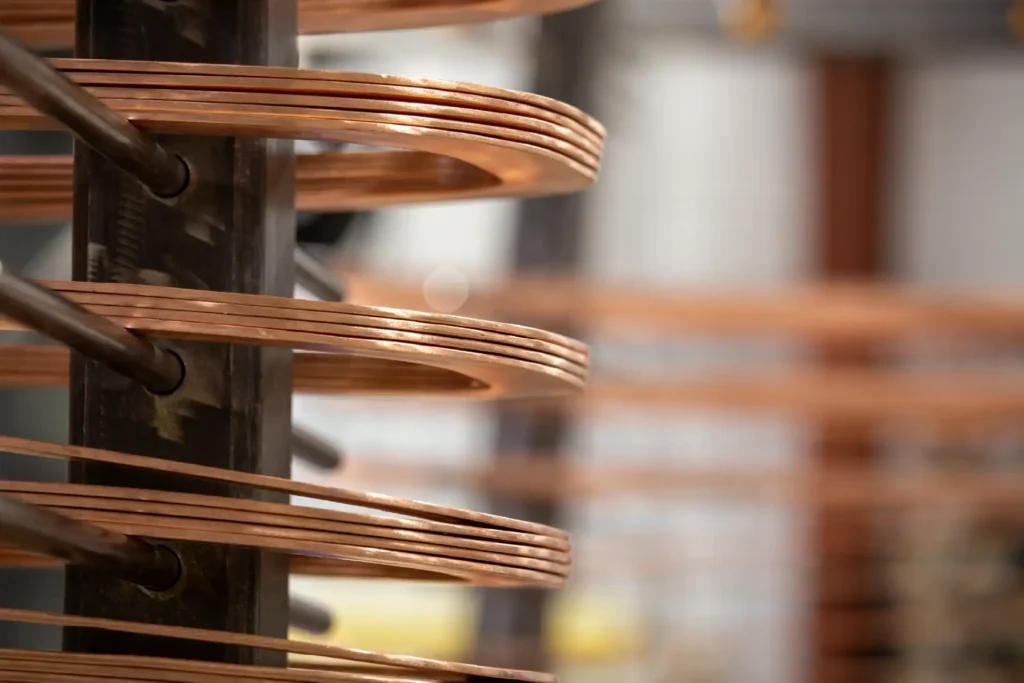

Before installation, each coil is carefully prepared to ensure long-term performance and reliability. Insulation is applied to protect against electrical faults, while alignment and spacing are set to exact tolerances using fixtures that maintain proper shape and positioning throughout the process. Every component is inspected for fit and consistency prior to moving forward, reducing the risk of issues later in the rebuild.
Once prepared, coils undergo comprehensive electrical testing to verify integrity and performance. This includes insulation and surge testing, detection of turn-to-turn faults, and waveform analysis to confirm uniform behavior across all coils. Only components that meet strict specifications advance to final assembly, ensuring dependable operation in the field.

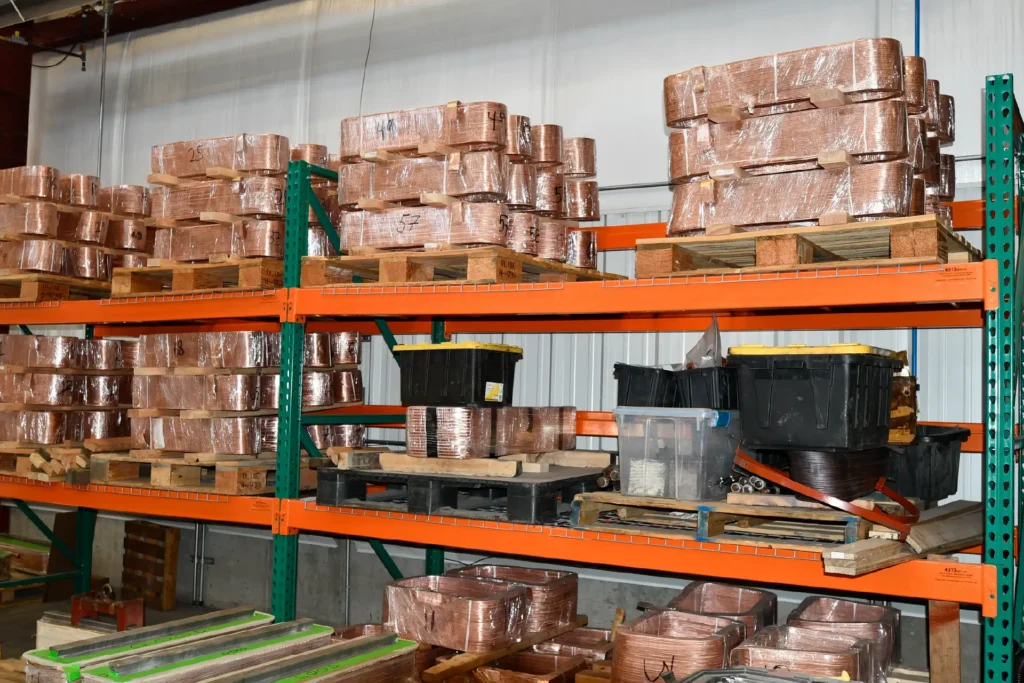

To support efficient installation, all coils are labeled, sequenced, and staged according to their exact placement within the rotor. Protective wrapping prevents damage or contamination, and organized, job-specific staging ensures nothing is misplaced during assembly. This structured approach minimizes downtime, reduces installation risk, and keeps projects moving on schedule.
Proven Rotor Pole Expertise
Sidewinders delivers complete rotor pole manufacturing and refurbishment services backed by controlled processes, advanced equipment, and in-house testing. From disassembly through final staging, every step is handled with precision and consistency to improve performance, extend equipment life, and reduce downtime. Our experience spans power generation systems, industrial motors, legacy equipment, and high-demand rotating machinery, allowing us to support a wide range of applications with confidence.
Start Your Rotor Pole Project
Our refurbishment process is designed to restore electrical integrity, enhance mechanical stability, and extend asset life while minimizing downtime. Whether reusing existing copper or fabricating new coils, Sidewinders provides flexible, turnkey solutions aligned with outage schedules and operational requirements.
If your equipment requires rotor pole repair, replacement, or full refurbishment, Sidewinders has the capability to handle the job from start to finish. Contact our team to review your project and determine the right path forward.
